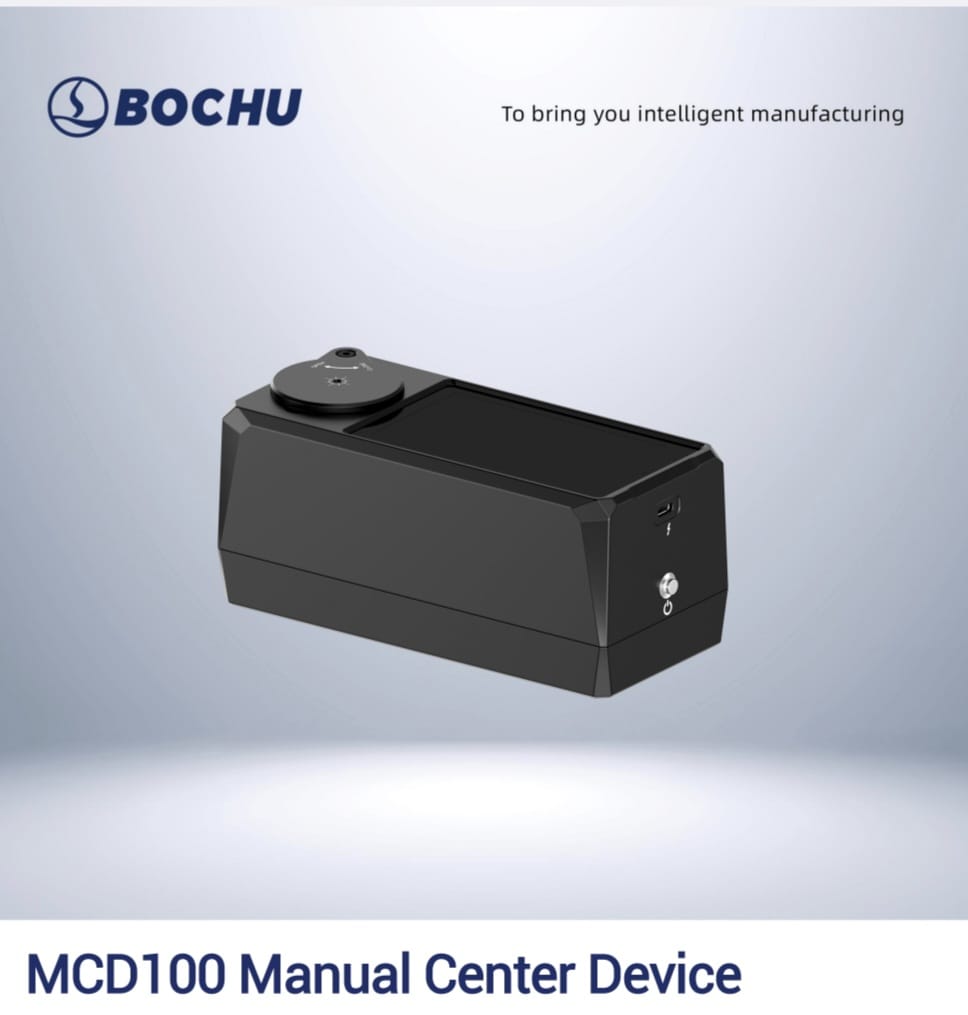

BOCHU MCD100 Manual Centering Device
BOCHU MCD100 Manual Centering Device - Image 2

BOCHU MCD100 Manual Centering Device

Original price was: R21,345.50.Current price is: R19,405.00. excl

BOCHU MCD100 Manual Centering Device

Check the product description below and click on additional information

SKU: MCD100 Category: Tags: , , ,

Description

BOCHU MCD100 Manual Centering Device

FOR THE PERFECT CUT & THE BEST QUALITY.

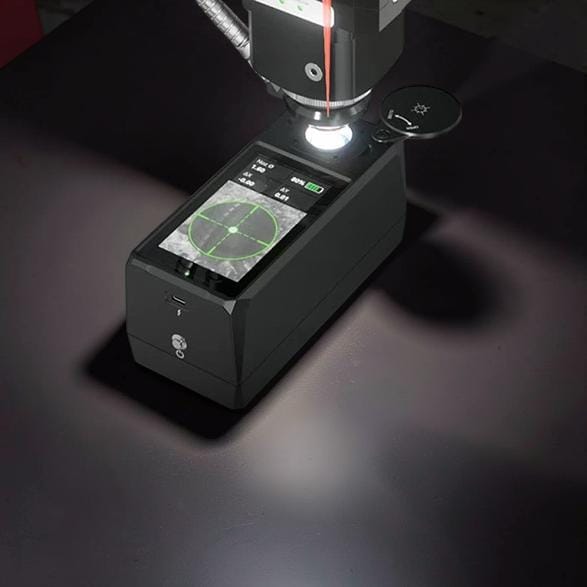

The BOCHU MCD100 Manual Centering Device is a professional alignment tool designed to quickly and accurately center the laser beam within the cutting nozzle on fiber laser cutting machines. It significantly improves cutting quality by eliminating beam-to-nozzle misalignment

We strive to bring you the highest quality product for the best prices

We make it easier for you! When you buy from MTSA you never have to over spend again

Additional information

Part Nr

MCD100
Suitability

Suitable for

The MCD100 is recommended for:

Fiber laser sheet cutting machines
Fiber laser tube cutting machines
Machines equipped with BOCHU, BOCI, Raytools, OSPRI, WSX, Precitec, and many other cutting heads that allow manual X-Y beam adjustment. Compatibility depends on the cutting head design rather than the laser source.
Ideal applications
New machine commissioning
After replacing a nozzle
After replacing a protective lens or collimating lens
Following cutting head repairs
Routine preventive maintenance
Diagnosing poor cutting performance
Improving oxygen and nitrogen cutting quality
Reducing nozzle wear and consumable costs
Benefits
Alignment completed in three simple steps: Align → Follow → Adjust.
Repeatability of ≤0.02 mm.
Absolute accuracy of ≤0.05 mm.
High-resolution integrated camera (1920 × 1200).
Self-contained unit with built-in display and rechargeable battery—no PC or network connection required.
IP64-rated for industrial environments
Make

BOCHU ORIGINAL
Quality Advise

Not suitable for

The MCD100 is not intended for:

CO₂ laser cutting machines
Plasma cutting systems
Waterjet machines
Laser heads that do not have manual centering adjustment screws
Machines where beam alignment is fully automated and cannot be manually adjusted.
Is it worth the investment?

For companies operating fiber laser cutting machines, especially in production environments, yes. Users have reported:

Up to 2× faster nozzle centering
More consistent cut quality
Easier training of new operators
Reduced dependence on operator experience
Improved cutting stability, particularly when using oxygen nozzles, where precise centering is critical.
Country

Sold in South Africa
